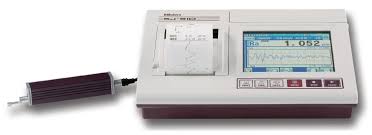

Máy đo độ nhám bề mặt SJ-310, 178-571-02E,Mitutotoyo, Portable Surface Roughness Tester, Surftest SJ-310

- Tên sản phẩm: Máy đo độ nhám bề mặt SJ-310, 178-571-02E,Mitutotoyo, Portable Surface Roughness Tester, Surftest SJ-310

- Model: 178-571-02A (inch/mm) ,178-571-01A (inch/mm) ,178-573-02A (inch/mm) ,178-573-01A (inch/mm) ,178-575-02A (inch/mm) , 178-575-01A (inch/mm)

- Tiêu chuẩn: JIS

- Xuất xứ: Japan

- Đơn giá: liên hệ ()

- Bảo hành: 12 Tháng

- Model khác: 178-571-02A (inch/mm) ,178-571-01A (inch/mm) ,178-573-02A (inch/mm) ,178-573-01A (inch/mm) ,178-575-02A (inch/mm) , 178-575-01A (inch/mm)

Đặt hàng

MÔ TẢ SẢN PHẨM

http://www.phuockieng.com/san-pham/may-dieu-khac-go-cnc-pk-1325a/

http://www.phuockieng.com/san-pham/may-dieu-khac-go-ld-1325/

http://www.phuockieng.com/san-pham/may-dieu-khac-go-tu-dong-zkm-1325a/

Toàn Cầu chuyên cung cấp máy đo độ nhám cầm tay SJ-310 mitutoyo

Toàn Cầu cam kết cung cấp máy đo độ nhám cầm tay SJ-310 giá rẻ nhất thị trường

Toàn Cầu luôn có sẵn linh kiện cho máy đo độ nhám cầm tay SJ-310 của Mitutoyo

http://www.phuockieng.com/san-pham/may-duc-khac-da-cnc-2-dau-pk-1325-2/

Form Measurement

Bulletin No. 2072

NEW PRODUCT INFORMATION

Surface Roughness Tester

Surftest SJ-310

• Large 5.7” color LCD with touch screen improves

operability and achieves high visibility.

• Conforms to the roughness standards JIS-B0601-2001,

JIS-B0601-1994, JIS-B0601-1982, VDA, ISO-1997 and

ANSI.

• Statistic measurements up to 3 parameters of 300

samples can be performed showing average, standard

deviation, max, min, pass rate and histogram.

• Up to ten measurement conditions along with

stored data can be displayed and printed out by the

built-in thermal printer. It can also store up to 10

measurement conditions with the built-in memory.

• The SJ-310 supports a micro-SD card (optional) for

storage of up to 10,000 measurement values, 500

measuring conditions, 1000 measuring data, 500

image (BMP) data, 500 statistic data or auto save up

to the last 10 sets of measurement data.

• The total measurement and sectional measurement

results can be displayed as well as the evaluation

curve, BAC/ADC curve.

• USB, Digimatic SPC output, RS-232C and External

Software connectivity is supported.

• Security is managed via a password lock to restrict

function changes and unnecessary settings that could

cause operation errors.

• 16 languages can be selected and are switchable.

• It corresponds to cissoidal calculation in which one

measurement can evaluate two different conditions.

16 languages selectable

Password lock function

Easy icons for standards

Precision is our Profession

Specifications

Unit: Inch (metric)

Model No.

SJ-310

SJ-310R

SJ-310S

Order No.

178-571-02A (inch/mm)

178-571-01A (inch/mm)

178-573-02A (inch/mm)

178-573-01A (inch/mm)

178-575-02A (inch/mm)

178-575-01A (inch/mm)

Measuring range

X-axis

.5 inch (12.5mm)

.22 inch (5.6mm)

Z-axis

14400µin (-7900µin~ +6300µin) [360µm (-200µm~ +160µm)]

Drive unit

Measuring speed

0.01, 0.02, 0.03 in/s (0.25, 0.5, 0.75 mm/s)

Detector

Measuring motion

Standard

Starts measuring from detector retracted state

Transverse tracing

Conical-taper angle

90°

60°

90°

60°

90°

60°

Stylus tip radius

5µm

2µm

5µm

2µm

5µm

2µm

Measuring force

4mN

0.75mN

4mN

0.75mN

4mN

0.75mN

Stylus tip material

Diamond

Skid radius of curvature

1.57 inch (40mm)

Skid force

400mN or less

Detecting method

Differential inductance

Applicable standards

JIS’82, JIS’94, JIS’01, VDA, ISO, ANSI

Assessed profiles

Primary profile (P), Roughness profile (R), DIN4776, MOTIF-R, MOTIF-W

Parameters

Ra, Ry, Rz, Rt, Rp, Rq, Rv, Sm, S, Pc, R3z, mr (c), Rpk, Rvk, dc, Rk, Mr1, Mr2, Lo, Rppi, R, AR, Rx, A1, A2, Vo, HSC, mr, SK, Ku, R.a, R.q, Wte, Wx, W, AW, Rmax, Rz1max,

RzJIS, Rlr, Rpm, tp, Htp, .a, .q (can be customized)

Sampling length

.003, .01, .03, .1, .3 inch (0.08, 0.25, 0.8, 2.5, 8mm)

Number of sampling lengths

x1~10, arbitrary length

Arbitrary length

0.01~.63 inch (0.0001 inch increment) [0.3~16.0 mm (0.1 mm increment)]

0.01~.22 inch (0.0001 inch increment)

[0.3~5.6 mm (0.01 mm increment)]

Cutoff filter

2CR / PC75 / Gaussian

Cutoff length

.003, .01, .03, .1, .3 inch (0.08, 0.25, 0.8, 2.5, 8mm)

100µinch, 320µinch, (2.5, 8µm)

Printer

Built-in thermal printer

Graphical printout

Bearing area curve (BAC1 BAC2), Amplitude distribution curve (ADC)

Printing width

1.89” (48mm) (Paper width: 2.28” (58 mm))

Recording

magnification

Vertical magnification

×10, ×20, ×50, ×100, ×200, ×500, ×1K, ×2K, ×5K, ×10K, ×20K, ×50K, ×100K, AUTO

Horizontal magnification

×1, ×2, ×5, ×10, ×20, ×50, ×100, ×200, ×500, ×1K, AUTO

Function

Customization

Desired parameters can be selected for calculation and display.

Statistical processing

Maximum value, minimum value, mean value, standard deviation, pass rate, frequency distribution chart of each parameter

GO/NG judgment

Upper/lower limits setting: 3 parameters, GO/NG judgment rule: mean value, 16% rule, maximum value rule

Measurement conditions saving

Maximum 10 measuring conditions using internal memory

Data saving

Save/retrieval of measurement conditions, evaluation data, sampling data, and statistical data with a memory card (option).

Calibration

Auto-calibration with the entry of numerical value.

Power saving function

If the auto-power-off function ON: Power turns off if not operated for 30-600 sec (Switchable)

External input/output

RS-232C I/F, SPC output USB I/F, External SW I/F

Power supply

Two-way power supply: battery (rechargeable Ni-H battery) and AC adapter.

Battery

Charging time

4 hours maximum

Recharge cycles

Approximately 1500 times (slightly varies with the usage and environmental conditions)

External dimensions

(W×D×H)

Display unit

10.83”x4.29”x7.80” (275x109x198mm)

Drive unit

4.53"x.91"x1.02" (115×23×26mm)

Mass

Display unit

3.75 lbs. (1.7kg)

Drive unit

.44 lbs. (0.2kg)

LCD dimensions

5.7” (144mm) color touch screen LCD

Dimensions

Small Tool Instruments andData ManagementDigital Scale and DRO SystemsTest Equipment and

SeismometersSensor SystemsOptical MeasuringForm MeasurementCoordinate Measuring MachinesVision Measuring Systems

10.8”(275)4.3”(109)

7.8” (198)

15°

Unit: Inch (mm)

Note: All information regarding our products, and in particular the illustrations, drawings, dimensional and performance data contained in this printed matter as well as other

technical data are to be regarded as approximate average values. We therefore reserve the right to make changes to the corresponding designs. The stated standards, similar

technical regulations, descriptions and illustrations of the products were valid at the time of printing. In addition, the latest applicable version of our General Trading Conditions

will apply. Only quotations submitted by ourselves may be regarded as definitive.

Mitutoyo products are subject to US Export Administration Regulations (EAR). Re-export or relocation of Mitutoyo products may require prior approval by an appropriate

governing authority.

Trademarks and Registrations

Designations used by companies to distinguish their products are often claimed as trademarks. In all instances where Mitutoyo America Corporation is aware of a claim, the

product names appear in initial capital or all capital letters. The appropriate companies should be contacted for more complete trademark and registration information.
